A dust cyclone can help you:

  • Save time cleaning filters
  • If using recyclable powders you'll be able to capture these before they are lost
  • Zero ongoing maintenance costs
  • Helps protect the extractor unit from particularly abrasive dusts and larger particles that might cause damage.
  • Large cyclonic filter for 1 to 2 HP dust collectors
  • 125 mm inputs/outputs - 2 x 100 mm adapters included
  • Made from plastic injected PEHD - black colour
  • Supplied with fixing screws and cutting guide

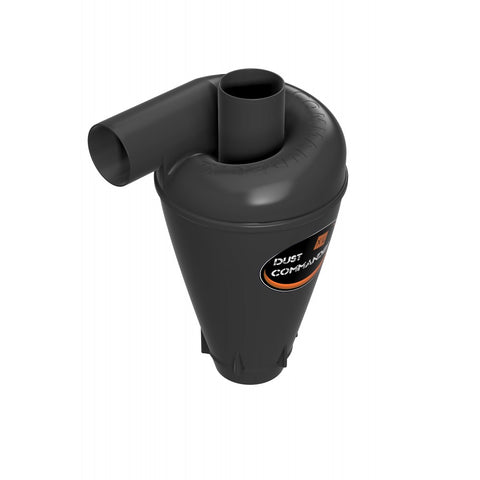

The DUST COMMANDER XL, a cyclone-type filter is a complement to your 1-3HP HVLP dust extractor that will enable you to eliminate the defects of conventional filters. It allows the separation of dust particles, thereby limiting the clogging of your vacuum cleaner filters and increasing their service life.

The cyclone separator collects the extracted particles in a sealed chamber that you attach to the base of the cyclone separator.

This cyclone is rated for airflows up to 2400m³/h (suited very well to the powerful Draper Dust Extractor). This is considerably higher rated than the nearest market competitors, meaning that you maximise the efficiency of your extraction system.

This model is only suitable for HVLP chip collectors and 100mm or larger systems.

Package contents :

1 x DUST COMMANDER XL FILTER
1 x ASSEMBLY KIT
2 x 100mm ADAPTERS

The DUST COMMANDER XL Mounting Kit includes :

6 x DIN 7981 4,8 x 25 stainless steel A2 pan head tapping screw type C, cross recessed H (phillips)
6 x DIN 7981 4,8 x 38 stainless steel A2 pan head tapping screw type C, cross recessed H (phillips)
6 x DIN 9021 M5 (5.3) stainless steel A2 washers
1 x rubber gasket
1 x self adhesive cutting template

Compatibility:

The DUST COMMANDER XL has been designed for use with HVLP (High Volume - Low pressure) type dust collectors. This filter must under no circumstances be used with an HPLV type workshop vacuum cleaner (Festool, Karcher, etc.).
